Big Plastic Lumps Barrel Bucket Shredder Shredding Crusher Machine Plant

INQUIRY

Product Details

Product Tags

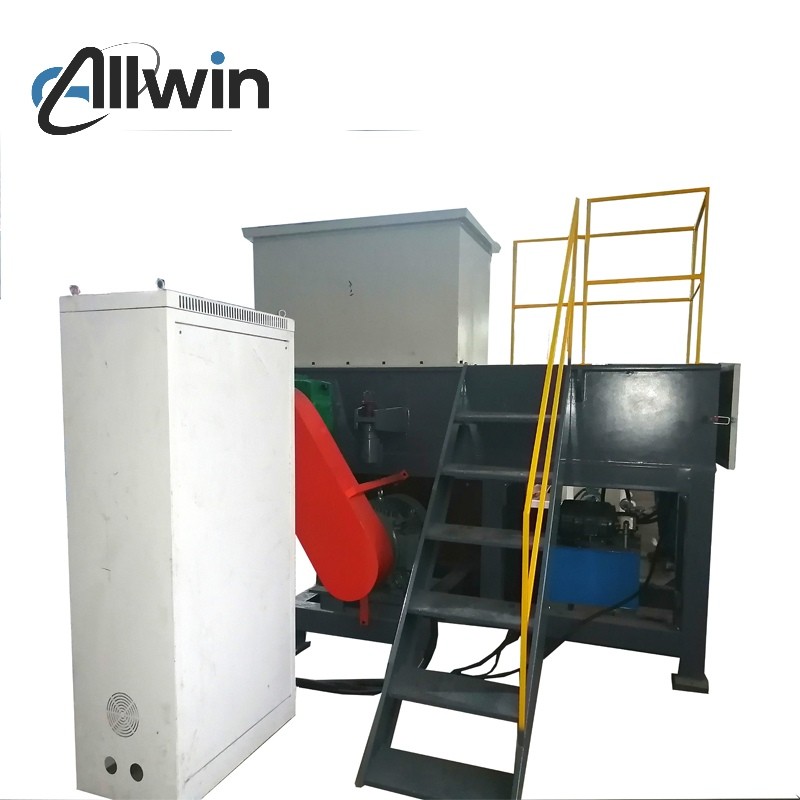

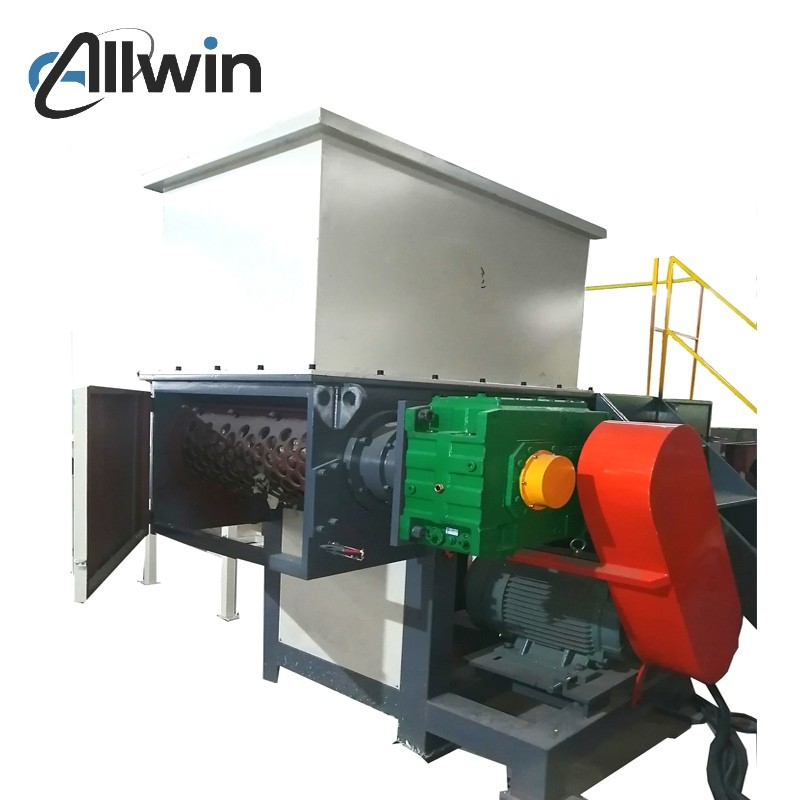

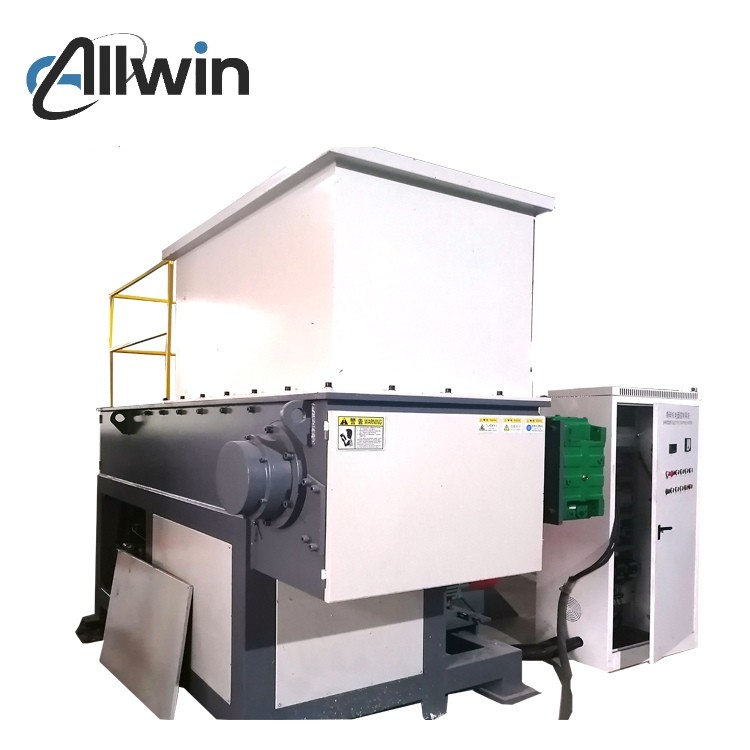

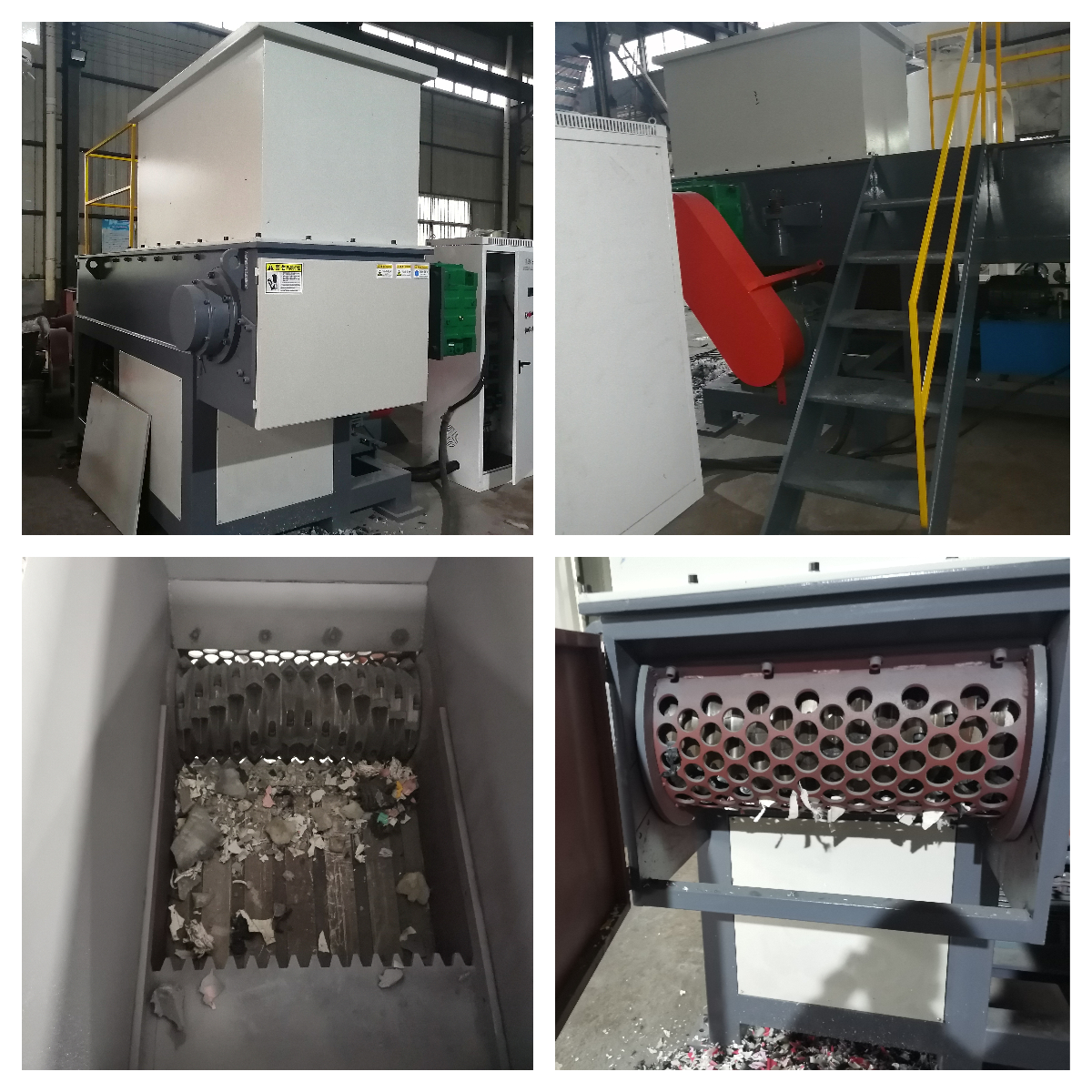

This single shaft shredder machine is suitable to treat the big size of plastic product ,such as big diameter plastic pipe ,pressing plastic film,plastic lumps, barrels,pipes,wood, wood pallet, big block material, plastic container, plastic chair,plastic pallet, woven bags,jumbo bags, cable,wood, paper, aluminum cans, fiber,etc.

The material push feeding system is hydraulic ways,its running very stably the machine is control by PLC system,the blade can rotated in opposite direction and also can close automatic if something unexpected happen,with very high safety service.

Normally the size of the mesh screen is 30-50mm, it also can be determined according to the crushing material and the next processing requirements.Moreover Customers can choose the blades materials and the satisfied model according to the size of the waste products and the capacity that want to get.

Application:

Parameters:

Item	Unit	AW-600	AW-800	AW-1000	AW-1500
Capacity	Kg/h	300	500	800	1200
Feed opening	mm	600	800	1000	1500
Rotor diameter	mm	280	400	400	480
Rotor speed	rpm	78	83	83	83
Motor power	kw	22KW	37KW	55KW	90KW
Number of rotor knives	Pc	26	39	48	73
Knife material		SKD-11
Hydraulic feeding power	kw	2.2KW	4KW	5.5KW	7.5KW
Standard screen	mm	30-50	40-50	50	50
Chamber size	mm	600*300	810*450	1010*450	1510*500
Machine Dimension(LWH)	mm	215013601850	305016802080	318018802180	588028802480
